Get a Price/Quote

UV Tubes And Lamps Specification

Surface Finish
Smooth, Transparent

Features
High Purity Quartz, Ozone/Non-Ozone Options, Long Life, Fast Start-up, Compact Design

Mounting Type
Holder/Bracket Mounted

Thickness
Standard Glass (varies by tube diameter)

Weight
80g - 300g (Approx., varies by length)

Usage & Applications
Sterilization, Water Purification, Air Disinfection, Surface Disinfection, Laboratory, Industrial and Domestic Uses

Pole Type
Double Ended

Product Type
UV Tubes and Lamps

Material
Glass Quartz Tube

Rated Power
8W, 15W, 30W, 36W, 55W (varies by model)

Length
300mm - 1200mm (varies by model)

Voltage
230V AC

Lighting
Ultraviolet (UV-C)

Input Voltage
220-240V AC

Working Temperature
-10C to 50C

Rated Current
0.18A to 0.43A

Socket
G13 / G23 / 2G11 (depends on lamp type)

Color
Clear (Emits UV-C Light)

Height
Varies by model and application

Ballast Requirement
Compatible with Electronic/Choke Ballasts

Diameter
26mm (T8), 15mm (T5), other options available

UV Output
Standard and High Output versions available

Brand Compatibility
Suitable Replacements for Most Major Brands

Wavelength
253.7 nm (UV-C, Germicidal Effectiveness)

Packaging
Individually Boxed with Protective Sleeves

Lamp Life
8000-9000 Hours Rated Life

Ignition Time
< 2 seconds

Mercury Content
Low Mercury ContentEnvironment Friendly

End Cap Material
Aluminum/Nickel-plated Brass

Operating Position
Horizontal/Vertical (Universal Positioning)

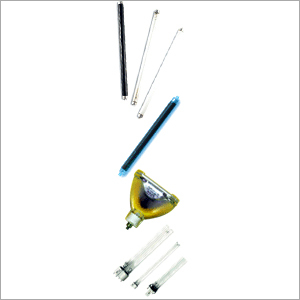

About UV Tubes And Lamps

Fostered with immense industrial expertise, we have come up with a world class range of UV Tubes and Lamps. Our offered range is manufactured using high quality raw material and advance technology. We develop this range as per the set international standard in order to meet the set parameters for quality. These UV Tubes and Lamps can protect your family from waterborne disease-causing microorganisms, such as bacteria, viruses, algae, and fungi. Further, clients can avail offered range from us at competitive price.

Features

Negligible maintenance
Elegant look
Longer service life
Low power consumption

FAQs of UV Tubes And Lamps:

Advanced Germicidal Performance

UV-C tubes and lamps emit at 253.7 nm, a wavelength proven for rapid and thorough disinfection. Whether used for surface sanitization, air purification, or water treatment, these lamps help maintain healthy environments across domestic, laboratory, and industrial settings.

Long-Lasting and Eco-Friendly Design

With rated lifespans exceeding 8,000 hours and minimized mercury content, these lamps combine extended usability with environmental consciousness. Their glass quartz construction ensures durability, while ozone and non-ozone options allow users to tailor the disinfection process to their requirements.

FAQ's of UV Tubes And Lamps:

Q: How do UV-C tubes and lamps achieve effective sterilization at 253.7 nm?

A: These lamps emit ultraviolet light at 253.7 nm, a wavelength that disrupts microorganism DNA and RNA. This process inactivates viruses, bacteria, and spores, making them ideal for germicidal applications such as water purification, surface disinfection, and air sterilization.

Q: What are the recommended usage areas for these UV tubes and lamps?

A: The lamps are suitable for sterilizing hospital rooms, laboratories, water systems, air ducts, and domestic environments. Their design supports both industrial and household needs, including surface, air, and water disinfection projects.

Q: When should the lamps be replaced or serviced?

A: Although rated for 8,000 to 9,000 hours, it's advisable to monitor UV output and operational hours. Replace the tubes when significant decline in disinfection efficiency is noticed, or at the manufacturer's recommended interval to ensure optimal performance.

Q: Where can these lamps be installed, and what mounting options are available?

A: The UV lamps can be installed horizontally or vertically, thanks to their universal positioning feature. They fit various holders or bracket mounts and have compatible sockets such as G13, G23, and 2G11, depending on the lamp type and application.

Q: What is the installation process for UV-C lamps with electronic or choke ballasts?

A: Installation simply involves mounting the lamp in a compatible holder and connecting it to an electronic or choke ballast. The lamps feature quick ignition (<2 seconds), and individual packaging with protective sleeves ensures safe handling and transport.

Q: Can these UV lamps replace bulbs from major brands?

A: Yes, these tubes are designed as suitable replacements for most leading UV lamp brands. With a range of power ratings (8W to 55W), multiple pole types, and standard socket configurations, they offer seamless compatibility for new installs or replacements.

Q: What advantages do high purity quartz and low mercury content offer?

A: High purity quartz enhances UV transmission and lamp longevity, while low mercury content reduces environmental impact and simplifies safe disposal. Users benefit from improved germicidal action alongside responsible, eco-friendly operation.
